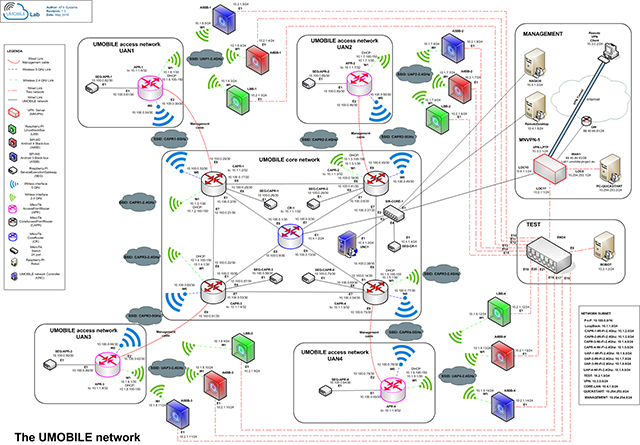

The UMOBILE network


WORK IN PROGRESS


Lab components

device usage Ethernet additional ports USB port role in UM Lab UM acronym
RB493G infrastructure 9 GE serial y CORE NETWORK CRCAPR
RB435G infrastructure 3 GE serial y ACCESS NETWORK APR
R52n-M infrastructure - - - radio add-on -
Raspberry Pi3 infrastructure 1 HDMI y SERVICE EXECUTION SEG
Raspberry Pi3 hand-held device emulation 1 HDMI y USER DEVICE LBB
BPI-M2 hand-held device emulation 1 HDMI y USER DEVICE A4BB
BPI-M3 hand-held device emulation 1 HDMI y USER DEVICE A5BB

"Jump-start" table to the Lab

Nr. IP Hostname OS zone ssh access http access
1 10.1.1.2 CAPR-1 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP core ssh://capr-1.umobilelab.local/ http://capr-1.umobilelab.local
2 10.1.1.3 CAPR-2 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP core ssh://capr-2.umobilelab.local http://capr-2.umobilelab.local
3 10.1.1.4 CAPR-3 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP core ssh://capr-3.umobilelab.local http://capr-3.umobilelab.local
4 10.1.1.5 CAPR-4 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP core ssh://capr-4.umobilelab.local http://capr-4.umobilelab.local
5 10.4.1.2 CR-1 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP core ssh://cr-1.umobilelab.local http://cr-1.umobilelab.local
6 10.100.0.26 SEG-CAPR-1 Raspbian 8 (jessie) HypriotOS – Docker – AP core ssh://seg-capr-1.umobilelab.local
7 10.100.0.42 SEG-CAPR-2 Raspbian 8 (jessie) HypriotOS – Docker – AP core ssh://seg-capr-2.umobilelab.local
8 10.100.0.58 SEG-CAPR-3 Raspbian 8 (jessie) HypriotOS – Docker – AP core ssh://seg-capr-3.umobilelab.local
9 10.100.0.70 SEG-CAPR-4 Raspbian 8 (jessie) HypriotOS – Docker – AP core ssh://seg-capr-4.umobilelab.local
10 10.4.1.4 SEG-CR-1 Raspbian 8 (jessie) HypriotOS – Docker – AP core ssh://seg-cr-1.umobilelab.local
11 10.4.1.3 UNC1 - Service Controller core ssh://unc1.umobilelab.local
12 10.2.1.4 A4BB-1 Android 4.2 – handheld device emulator test ssh://a4bb-1.umobilelab.local
13 10.2.1.7 A4BB-2 Android 4.2 – handheld device emulator test ssh://a4bb-2.umobilelab.local
14 10.2.1.10 A4BB-3 Android 4.2 – handheld device emulator test ssh://a4bb-3.umobilelab.local
15 10.2.1.13 A4BB-4 Android 4.2 – handheld device emulator test ssh://a4bb-4.umobilelab.local
16 10.2.1.5 A5BB-1 Android 5.1 – handheld device emulator test ssh://a5bb-1.umobilelab.local http://a5bb-1.umobilelab.local:8000/
17 10.2.1.8 A5BB-2 Android 5.1 – handheld device emulator test ssh://a5bb-2.umobilelab.local http://a5bb-2.umobilelab.local:8000/
18 10.2.1.11 A5BB-3 Android 5.1 – handheld device emulator test ssh://a5bb-3.umobilelab.local http://a5bb-3.umobilelab.local:8000/
19 10.2.1.14 A5BB-4 Android 5.1 – handheld device emulator test ssh://a5bb-4.umobilelab.local http://a5bb-4.umobilelab.local:8000/
20 10.2.1.3 LBB-1 Raspbian 8 (jessie) – handheld device emulator test ssh://lbb-1.umobilelab.local
21 10.2.1.6 LBB-2 Raspbian 8 (jessie) – handheld device emulator test ssh://lbb-2.umobilelab.local
22 10.2.1.9 LBB-3 Raspbian 8 (jessie) – handheld device emulator test ssh://lbb-3.umobilelab.local
23 10.2.1.12 LBB-4 Raspbian 8 (jessie) – handheld device emulator test ssh://lbb-4.umobilelab.local
24 10.2.1.2 ROBOT Raspbian 8 (jessie) – handheld device emulator test ssh://robot.umobilelab.local
25 10.1.1.6 APR-1 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP uan1 ssh://apr-1.umobilelab.local http://apr-1.umobilelab.local
26 10.100.0.82 SEG-APR-1 Raspbian 8 (jessie) HypriotOS – Docker – AP uan1 ssh://seg-apr-1.umobilelab.local
27 10.1.1.7 APR-2 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP uan2 ssh://apr-2.umobilelab.local http://apr-2.umobilelab.local
28 10.100.0.86 SEG-APR-2 Raspbian 8 (jessie) HypriotOS – Docker – AP uan2 ssh://seg-apr-2.umobilelab.local
29 10.1.1.8 APR-3 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP uan3 ssh://apr-3.umobilelab.local http://apr-3.umobilelab.local
30 10.100.0.90 SEG-APR-3 Raspbian 8 (jessie) HypriotOS – Docker – AP uan3 ssh://seg-apr-3.umobilelab.local
31 10.1.1.9 APR-4 OpenWRT CHAOS CALMER (15.05.1, r48532) – AP uan4 ssh://apr-4.umobilelab.local http://apr-4.umobilelab.local
32 10.100.0.94 SEG-APR-4 Raspbian 8 (jessie) HypriotOS – Docker – AP uan4 ssh://seg-apr-4.umobilelab.local
33 10.4.1.1 MNVPN-1 VPN access mgmt http://lab1.umobile-project.eu/
34 10.4.1.5 NETMONITOR Linux Centos – network management mgmt http://netmonitor.umobilelab.local/
35 10.4.1.6 REMOTEDESKTOP windows 2003 sr2 – remote desktop helper mgmt

Download the "Jump-start" table

Details on components

Type Name MB model Accessories q.ty Description
CoreRouter (CR) CR CoreRouter (CR), 9 Giga Ethernet
RB493G 1 Nine Gigabit ethernet ports, three miniPCI slots http://routerboard.com/RB493G
CA493 1 Black aluminium Indoor case (3 holes for Nfemale Bulkhead connectors or AC/SWI Swivel antennas) http://routerboard.com/CA493
MicroSD 1 MicroSD 32G
24HPOW 1 24V 1.6A adapter, for long cables, for installations with many miniPCI http://routerboard.com/24HPOW
CoreAccessPointRouter (CAPR) CAPR CoreAccessPointRouter (CAPR) 9 Giga Ethernet, 1 x wireless dual-channel 5 Ghz, 1 x wireless dual-channel 2.4 Ghz
RB493G 1 Nine Gigabit ethernet ports, three miniPCI slots http://routerboard.com/RB493G
CA493 1 Black aluminium Indoor case (3 holes for Nfemale Bulkhead connectors or AC/SWI Swivel antennas) http://routerboard.com/CA493
MicroSD 1 MicroSD 32G
RBGPOE 1 The new MikroTik Gigabit PoE adapter for powering any RouterBOARD over Gigabit Ethernet http://routerboard.com/RBGPOE
24HPOW 1 24V 1.6A adapter, for long cables, for installations with many miniPCI http://routerboard.com/24HPOW
R52nM 2 802.11a/b/g/n dual band miniPCI card Two MMCX antenna connectors http://routerboard.com/R52nM
ACSWIM 4 2.4-5.8GHz Swivel Antenna with cable and MMCX connector. http://routerboard.com/ACSWIM
AccessPointRouter (APR) APR AccessPointRouter (APR) 3 Giga Ethernet, 1 x wireless dual-channel 5 Ghz, 1 x wireless dual-channel 2.4 Ghz
RB435G 1 Five miniPCI slots and three Gigabit Ethernet ports http://routerboard.com/RB435G
CA433U 1 Indoor case (3 holes for Nfemale Bulkhead connectors or Swivel antennas and hole for USB http://routerboard.com/CA433U
MicroSD 1 MicroSD 32G
RBGPOE 1 The new MikroTik Gigabit PoE adapter for powering any RouterBOARD over Gigabit Ethernet http://routerboard.com/RBGPOE
24HPOW 1 24V 1.6A adapter, for long cables, for installations with many miniPCI http://routerboard.com/24HPOW
R52nM 2 802.11a/b/g/n dual band miniPCI card Two MMCX antenna connectors http://routerboard.com/R52nM
ACSWIM 4 2.4-5.8GHz Swivel Antenna with cable and MMCX connector. http://routerboard.com/ACSWIM
ServiceExecutionGateway (SEG) SEG ServiceExecutionGateway (SEG) RASPBERRY PI 3 MODEL B 1 Ethernet, 1 x wireless dual-channel 2.4 Ghz
RASPBERRY PI 3 1 RASPBERRY PI 3 MODEL B https://www.raspberrypi.org/products/raspberry-pi-3-model-b/
RasbianDoker http://blog.hypriot.com/downloads/
power supplay 1 Micro USB Plug In Power Supply http://uk.rs-online.com/web/p/plug-in-power-supply/9098135/
Case Black 1 Raspberry Pi 3 B Development Board Case, Black, Grey  http://uk.rs-online.com/web/p/development-board-enclosures/9098138/
MicroSD 1 MicroSD 32G
UmobileNetworkController (UNC) UNC UmobileNetworkController (UNC) Server + Storage
MNP664 1 Only Hardware MNP664
Android 5 Black-box (A5BB) A5BB AndroidBlackBox 5.x (A5BB) BPI-M3 1 x ethernet , 1 x wireless dual-channel 2.4 Ghz
BPI-M3 1 5.1 Android Version http://www.bananapi.com/index.php/component/content/article?layout=edit&id=85
Android 5.1 http://www.bananapi.com/index.php/download?layout=edit&id=90
MicroSD 1 MicroSD 32G
Case 1 Trasparent Case
power supplay 1 power supplay
ACSWI 1 2.4/5Ghz Omni antenna, 4dBi gain, u.fl connector http://routerboard.com/ACSWI
Android 4 Black-box (A4BB) A4BB AndroidBlackBox 4.x (A4BB) BPI-M2 1 x ethernet , 1 x wireless dual-channel 2.4 Ghz
BPI-M2 1 4.2 Android Version http://www.bananapi.com/index.php/component/content/article?layout=edit&id=73
Android 4.2 http://www.bananapi.com/index.php/download?layout=edit&id=75
MicroSD 1 MicroSD 32G
Case 1 Trasparent Case
power supplay 1 power supplay
ACSWI 1 2.4/5Ghz Omni antenna, 4dBi gain, u.fl connector http://routerboard.com/ACSWI
Linux Black-box (LBB) LBB Same of SEG LinuxBlackBox (LBB) RASPBERRY PI 3 MODEL B 1 Ethernet, 1 x wireless dual-channel 2.4 Ghz
Server Test Robot (ROBOT) ROBOT Same of SEG Server Test Robot (ROBOT) RASPBERRY PI 3 MODEL B 1 Ethernet, 1 x wireless dual-channel 2.4 Ghz
Switch 24 Porte SW24 CRS125-24G-1S-RM 1 Switch Mikrotik 24 porte http://routerboard.com/CRS125-24G-1S-RM
MajorNET VPN Server (MNVPN) MNVPN MajorNET MNP364 1 MajorNET VPN Server (MNVPN) http://www.majornet.it/funzioni/majorgw
CoreAccessPointRouter2 (CAPR2+SEG2) CAPR2 CoreAccessPointRouter (CAPR2+SEG2) ALL-IN-ONE 9 Giga Ethernet, 1 x wireless dual-channel 5 Ghz, 1 x wireless dual-channel 2.4 Ghz
MNCTL-1 1 Metal box + accessories + power supply + cable
APU1d 1 PC Engines: M/B APU1D, 3xGb lan port, 1GHz Dualcore, 2GB DDR3,USB,2xMini-PCIE, RTC
msata 1 mSATA 30G
R11e-2HPnD 1 2Ghz miniPCI-express, 802.11b/g/n dual chain, 1000mW, 2x MMCX http://routerboard.com/R11e-2HPnD
R11e-5HacD 1 5Ghz miniPCI-express, 802.11ac/a/n dual chain, 500mW, 2x MMCX http://routerboard.com/R11e-5HacD
ACSWIM 4 2.4-5.8GHz Swivel Antenna with cable and MMCX connector. http://routerboard.com/ACSWIM
U5EB-001-BK 1 Patch cord cat 6 15 cm
RB493G 1 Nine Gigabit ethernet ports, three miniPCI slots http://routerboard.com/RB493G
MicroSD 1 MicroSD 32G
AccessPointRouter (APR2+SEG2) APR2 AccessPointRouter (APR2+SEG2) ALL-IN-ONE 3 Giga Ethernet, 1 x wireless dual-channel 5 Ghz, 1 x wireless dual-channel 2.4 Ghz
MNCTL 1 Metal box + accessories + power supply + cable
APU1d 1 PC Engines: M/B APU1D, 3xGb lan port, 1GHz Dualcore, 2GB DDR3,USB,2xMini-PCIE, RTC
msata 1 mSATA 30G
R11e-2HPnD 1 2Ghz miniPCI-express, 802.11b/g/n dual chain, 1000mW, 2x MMCX http://routerboard.com/R11e-2HPnD
R11e-5HacD 1 5Ghz miniPCI-express, 802.11ac/a/n dual chain, 500mW, 2x MMCX http://routerboard.com/R11e-5HacD
ACSWIM 4 2.4-5.8GHz Swivel Antenna with cable and MMCX connector. http://routerboard.com/ACSWIM
